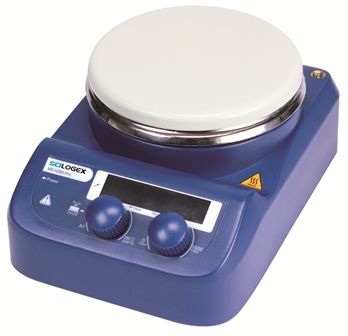

MS-H280-Pro LED Digital Hotplate Stirrer
Click to enlarge image(s)

MS-H280-Pro Circular-top Digital Magnetic Hotplate Stirrer Features:

  • Heat only, stir only or heat and stir together functions
  • Easy to read LED display
  • Ceramic plate for chemical resistance and easy clean
  • Accessory PT-1000 Sensor for medium temperature control available
  • Accessory reaction blocks for flasks and vessels available
  • Electronic speed control for constant speed even during changes in load
  • Hot warning sign if temperature is above 50°C
  • cTUVus approved
  • CE Marked
  • 2 Year Warranty

MS-H280-Pro Circular-top Digital Magnetic Hotplate Stirrer Specifications:

Hotplate/Stirrer : MS-H280-Pro
Temp range : Ambient - 280°C
Speed range : 100-1500rpm
Temp display accuracy : ±0.1°C
Temp control accuracy with PT1000 : ±0.5°C
Heating rate (1 liter water) : 6K/min
Speed/Heat display : LED
Motor type : DC
Stirring capacity : 3L
Plate diameter : 5.3"
Plate material : Ceramic
Dimensions : 10.2"L x 6"W x 3.2"H
Weight : 5lbs
Voltage : 110Volts 60Hz, 515W


MS-H280-Pro Circular-top Digital Magnetic Hotplate Stirrer Ordering Information:

Catalog No. : Model
86143101 : MS-H280-Pro LED Digital Hotplate Stirrer with Ceramic Plate, 110V 60Hz


MS-H280-Pro Circular-top Digital Magnetic Hotplate Stirrer Accessories:

Catalog No. : Description
18900016 : SCILOGEX PT1000 Sensor
18900136 : SCILOGEX PT1000 Sensor with glass protective sleeve for use with corosive chemicals
18900001 : Carrying plate for quarter pie reaction blocks
18900065 : Containment ring to secure quarter pie reaction blocks in hotplate
18900002 : Red quarter reaction block, 11 holes 4 ml reaction vessel 15.2mm dia x 20mm depth
18900003 : Purple quarter reaction block, 4 holes 20 ml reaction vessel 28mm dia x 24mm depth
18900004 : Blue quarter reaction block, 4 holes 30 ml reaction vessel 28mm dia x 30mm depth
18900005 : Black quarter reaction block, 4 holes 16ml reaction vessel 28mm dia x 43mm depth
18900048 : Green quarter reaction block, 6 holes 8ml reaction vessel 17.75mm dia x 26mm depth
18900049 : Gold quarter reaction block, 4 holes 16ml reaction vessel 21.6mm dia x 31.7mm depth
18900080 : Reaction block for 50ml round bottom flasks (4 flasks maximum capacity)
18900081 : Reaction block for 100ml round bottom flask (2 flasks maximum capacity)
18900082 : Reaction block for 250ml round bottom flask (1 flask maximum capacity)
18900083 : Reaction block for 500ml round bottom flask (1 flask maximum capacity)

Click to Download PDF: SCILOGEX Heating, Stirring, Mixing & Distilling Catalog
