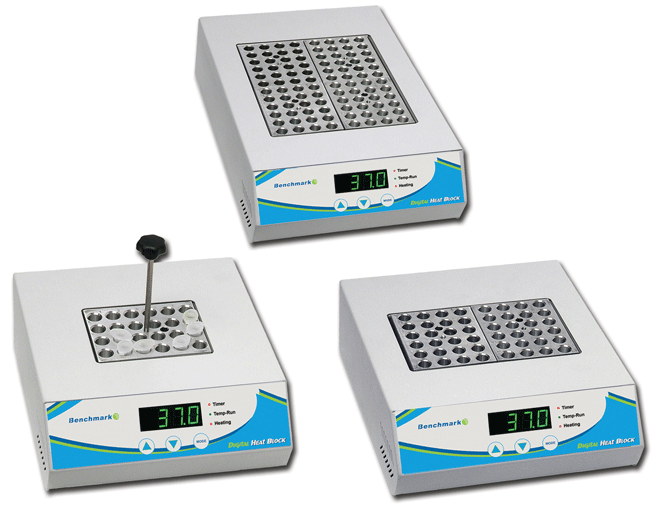

Benchmark Digital Dry Bath, Single position
Click to enlarge image(s)
Digital Dry Baths
Benchmark Digital Dry Baths provide accurate “set and walk away” digital temperature selection, eliminating the need for external thermometers and repetitive “fine tuning” of a temperature control knob. Simple enter the desired temperature on the digital touchpad and the Benchmark’s Dry Bath provides accurate temperature with real time monitoring that continuously maintains the selected temperature within ± 0.2°C. In addition, a digital timer is built into the touchpad display. Although it is not designed to shut off the heater, it can be used to alert the user that a chosen time interval has timed out.
The cavities of the high grade aluminum blocks are precision machined to match the conical size and shape of 0.5, 1.5, 2.0, 15 and 50ml tube sizes, providing unsurpassed temperature transfer. Assorted blocks are available for compatibility with nearly all common laboratory tubes and plates. Custom blocks are also available upon request.
All Benchmark dry baths offer a built-in user recalibration functions, to guarantee long term temperature accuracy. Each dry bath includes an easy to use block lifter, with a temperature insulated handle for quick, convenient exchange of blocks, even while they’re still hot.
-       Digital accuracy and convenience
-       Single, double and four block capacity
-       Assorted blocks for a wide variety of tube sizes
-       Custom blocks available upon request
Technical Data
Temp. range : Room temperature +5°C to 150°C (Max. temp of BSH1004 is 130°C)
Temp. accuracy: ±.0.2°C
Temp. uniformity: ±0.2°C
Temp. increment: 0.1°C
Timer: Off or 1 min. to 99 hr. 59min
Dimensions :
(w x d x h):
7. x 9 x 3.2 in./20 x 23 x 8 cm (single)
8.7 x 10.3 x 3.2 in./22 x 26 x 8 cm (Dual)
8.7 x 14 x 3.2 in./22 x 35.5 x 8 (Four)
Block dimensions: 3 x 3.75 x 2 in. /7.6 x 9.5 x 5 cm
Electrical: 120 ro 230V , 50-60Hz
Single: 350W, Dual: 600W, Four: 1000W
Warranty: 2 Years
