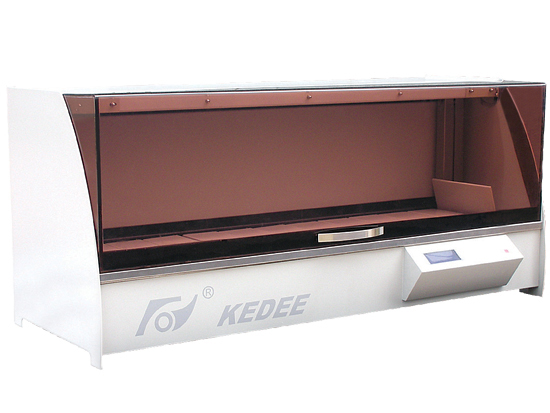

KD-TS3B Automatic Tissue Processor
Features:
■ The cover is elegent with fluent line and it is spraying with APS engineering plastic which has high-intensity,anticorrosion function  and easy to clean   With key parts imported, it runs steadily without noise and comply with theory of ergonomics
■ 20sets programme 、broad screen touch LCD、with man-machine dialogue inerface , prompt identifying can be made in abnormal situation to make sure each operation can be indicated(online help), synchronous animation show the  present working process clearly
■ Environment-friendly inner circulated  air cleaning system,adsorb、remove、decompose toxic and  harmful gas in the instrument
■ Randomly setting start-up time and automatically showing finish time,make sure task is finished in stipulated time
■ 10~60s adjustable time of dropping liquid,shaking basket,and drop liquid above cylinder once exchange cylinder to avoid liquid mix from one bath to another,in this way, service time of reagent can be prolonged,aviod dirty on the table
■ 0~6times /min adjustable stirring times(0 shows no-stirring),make sure all tissues immersed thoroughly,evenly,and completed enough
■ Once power-off,protecting cylinderNo.1~7 can be set,position of protecting cylinder can be adjusted as required
■ Self-control fan,it automatically starts up once basket goes up;as basket goes downwards,fan works 10s per min
■ Self-control illuminating lamp,it starts up in programming;touch any key to prolong to 2 min as the instrument is running
■ Waterless inner heating,high precision of controlling
■Low energy-consuming control circuit,self-protection once power-off;display panel is still illumed and scrolling  panel indicats it's self-protecting situation as power-off,and time of running is more than 30 H
■No less than 100 tissues can be processed one time
Technical specifications:
■ Numbers of station:12 (No.9 : reagent  station,No.10、11、12 are wax dispensing station)
■ Volume of each station:1500ml
■Processsing time of each station: anytime (No.1 station),0~24 H (other station)
■Range of presetting temperature: ambient~80℃
■Time of exchange station、delay、leachate:10~60s (adjustable),and leachate 、basket shaking  work above station
■Tissue Protecting station :No.1~No.7 Cylinder(adjustable)
■ Voltage:AC220V   50Hz,AC110V   60Hz
■ Power:800VA
■ Dimension:1010x550x420 mm
■ Weight:80kg
