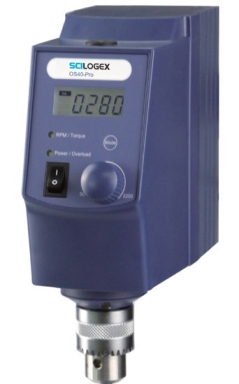

SCILOGEX OS40-Pro LCD Digital Overhead Stirrer
Click to enlarge image(s)

OS40-Pro LCD Digital Overhead Stirrer Features:

  • Accurate microprocessor stirring speed control guarantees speed precision
  • Anti-spill microprocessor control slow start up prevents sample spills
  • A through-shaft design allows for easy adjustment of the impeller position
  • Large chuck diameter for many shaft types
  • LCD display and control. Set value and actual value can be displayed for real-time monitoring of torque and speed
  • Over torque protection automatically stops the motor
  • Pass through stirrer rods accepted
  • PC control via RS232 interface, for control and documenting all measured values via PC. Parameters can be set to carry out safety monitoring

OS40-Pro LCD Digital Overhead Stirrer Specifications

Maximum stirring capacity : 40 Liters
Maximum torque : 60Ncm
Viscosity maximum : 50000mPas
Speed range : 50-2200rpm
Speed display accuracy : ± 3rpm
Speed display resolution : ± 1rpm
Chuck diameter range : 0.5-13mm
Dimensions : 3.3W x 8.7H x 7.3Dinches
Motor rating input : 120W
Motor rating output : 100W
Weight : 5.5lbs
Voltage : 110Volts 60Hz, 130W

OS40-Pro LCD Digital Overhead Stirrer Accessories:

Catalog No.   Description
18900131 : Plate stand with support rod and clamp 18900131-Plate-stand.jpg
18900071 : Cross stirrer, 316L stainless steel
18900072 : Straight stirrer, 316L stainless steel
18900073 : Paddle stirrer, 316L stainless steel
18900074 : Centrifugal stirrer, 316L stainless steel
18900075 : Cross stirrer, PTFE coated 18900075-Cross-Stirrer-PTFE-Coated.jpg
18900076 : Straight stirrer, PTFE coated 18900076-Straight-Stirrer-PTFE-Coated.jpg
18900077 : Paddle stirrer, PTFE coated 18900077-Paddle-Stirrer-PTFE-Coated.jpg
18900078 : Centrifrugal stirrer, PTFE coated 18900078-Centrifugal-Stirrer-PTFE-Coated.jpg

Click to Download PDF: SCILOGEX Heating, Stirring, Mixing & Distilling Catalog
