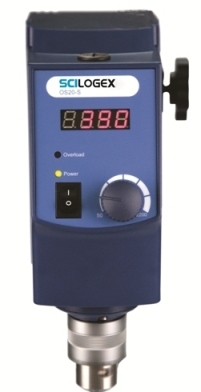

OS40-S LED Digital Overhead Stirrer Features:
- Analog speed control is displayed on the LED display
- High torque for viscous medium stirring
- Over torque protection automatically stops the motor
- A through-shaft design allows for easy adjustment of the impeller position
- Large chuck diameter for many shaft types
- Pass through stirrer rods accepted
- 2 YEAR WARRANTY
OS40-S LED Digital Overhead Stirrer Specifications
| Maximum stirring capacity | : | 40 Liters |
| Maximum torque | : | 60Ncm |
| Viscosity maximum | : | 50000mPas |
| Speed range | : | 50-2200rpm |
| Speed display accuracy | : | ± 3rpm |
| Speed display resolution | : | ± 1rpm |
| Chuck diameter range | : | 0.5-13mm |
| Dimensions | : | 3.3W x 8.7H x 7.3Dinches |
| Motor rating input | : | 120W |
| Motor rating output | : | 100W |
| Weight | : | 5.5lbs |
| Voltage | : | 110Volts 60Hz, 130W |
OS40-S LED Digital Overhead Stirrer Ordering Information:
| Catalog No. | : | Model |
|
84020221 |
: | OS40-S LED Digital Overhead Stirrer, 40L capacity, 110V, 60Hz |
OS40-Pro LCD Digital Overhead Stirrer Specifications
| Maximum stirring capacity | : | 40 Liters |
| Maximum torque | : | 60Ncm |
| Viscosity maximum | : | 50000mPas |
| Speed range | : | 50-2200rpm |
| Speed display accuracy | : | ± 3rpm |
| Speed display resolution | : | ± 1rpm |
| Chuck diameter range | : | 0.5-13mm |
| Dimensions | : | 3.3W x 8.7H x 7.3Dinches |
| Motor rating input | : | 120W |
| Motor rating output | : | 100W |
| Weight | : | 5.5lbs |
| Voltage | : | 110Volts 60Hz, 130W |
OS40-Pro LCD Digital Overhead Stirrer Accessories:
| Catalog No. | Description | ||
| 18900131 | : | Plate stand with support rod and clamp |  |
| 18900071 | : | Cross stirrer, 316L stainless steel |  |
| 18900072 | : | Straight stirrer, 316L stainless steel |  |
| 18900073 | : | Paddle stirrer, 316L stainless steel |  |
| 18900074 | : | Centrifugal stirrer, 316L stainless steel |  |
| 18900075 | : | Cross stirrer, PTFE coated |  |
| 18900076 | : | Straight stirrer, PTFE coated |  |
| 18900077 | : | Paddle stirrer, PTFE coated |  |
| 18900078 | : | Centrifrugal stirrer, PTFE coated |  |
Click to Download PDF: SCILOGEX Heating, Stirring, Mixing & Distilling Catalog
