TubeRoller with 10 rollers
Click to enlarge image(s)
TubeRoller tuing Roller for tubes and bottles
Benchmark’s TubeRollers are designed for the gentle, thorough mixing of a variety of containers, including VacutainersTM, bottles, test tubes, centrifuge tubes and roller bottles. Both models (5 roller and 10 roller) operate at a constant 38 rpm, chosen as the optimum speed for the broadest range of mixing requirements.
As the roller mechanism rotates through each complete revolution, the right side of each roller is gently elevated about 0.5 in (13mm) and returns to the horizontal starting position. This additional, gentle up/down motion provides a “wave” effect and guarantees that the entire sample is subjected to complete, thorough mixing uniformity that can not be matched by any stationary roller apparatus.
From blood collection tubes to roller bottles, Benchmark TubeRollers are the ideal choice for research, clinical laboratories and doctors’ offices.
Gentle rolling motion
Smooth +/-5° tilt action
For tubes/bottles from 8mm to 200mm diameter
Technical Data
Speed: Fixed, 38 rpm (±10%)
Motion: Simultaneous roll & tilt (±5°)
Operating temp: +4° to 40°C (external ambient temp.)

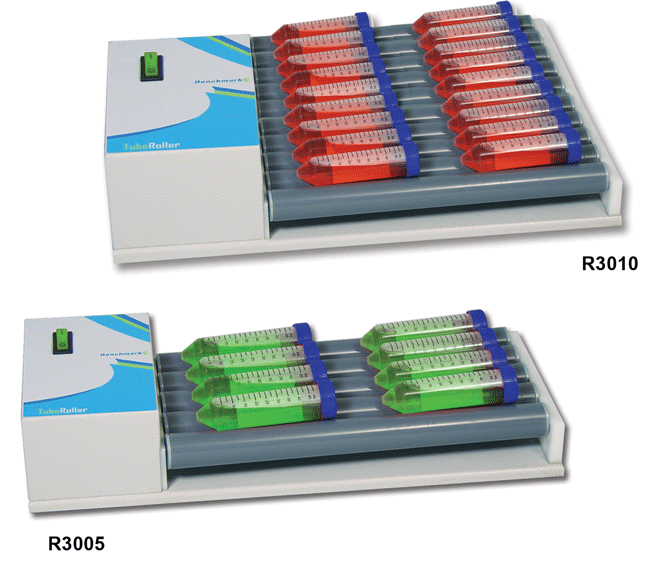

R3005 R3010
Number of rollers: 5 10
Dimensions :
(w x d x h):
45 x 18 x 9 in.
18 x 7 x 3.5 cm
45 x 36 x 9 in.
18 x 14 x 3.5 cm
Weight: 11 lbs./5kg 17.6 lbs./8kg
Individual roller dims: 3 x 32 cm (1.2 x 12.5 in)
Vessels accepted: 8mm to 200mm diameter
Roller spacing: 5mm: rollers are on 35mm centers
Electrical: 120V , 60Hz or 230V, 50-60Hz
