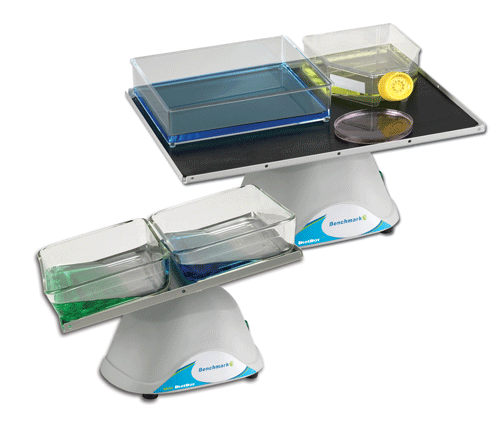

BlotBoyTM & Mini BlotBoy
 Modeled after our popular BioMixerTM series of “nutating” shakers, these platform rockers provide the perfect 3-dimensional motion for all blot related applications. Their tilt angle and speed have been optimally set for gentle, but thorough mixing in gel trays, boxes and other flat vessels.
Mini BioBoyTM and BiotBoyTM are supplied with autoclavable flat mats and are ideal for blot washed and gel staining/destaining. Both models have been designed to conserve bench space. The Mini BioBoy is supplied with a 10.5 x 7.5 inch platform while the larger BiotBoy’s 12 x 12 inch platform expands the useable work surface by 80%.
The Mini BiotBoy and BlotBoy can accept stackable platforms and handle loads up to 2kg. Both have maintenance free brushless motors and are safe for use in cold rooms and incubators.

Features
-       Optimized speed and tilt for gel blotting, washing & staining
-       Tri-directional motion for thorough, gentle mixing
-       Optional stacking platforms available
-       Cold room and incubator safe

Technical Data
Speed: Fixed, 12 rpm (10 rpm 230V)
Title angle: +/-8°
Platform size: 10.5 x 7.5 in./27 x 19 cm (Mini BiotBoy)
12 x 12 in./30 x 30 cm (BlotBoy)
Load capacity: 4.5 lbs./2kg
Dimensions:
(W x D x H)
10.5 x 7.5 x 8 in./27 x 19 x 20 cm (Mini)
12 x 12 x 8 in./30 x 30 x 20 cm (BlotBoy)
Operating temp. range +4° to +45°C
Weight: 4.4 lbs (2kg)
Electrical: 115V or 230V, 50-60Hz, 50W
Warranty: 2 Years
