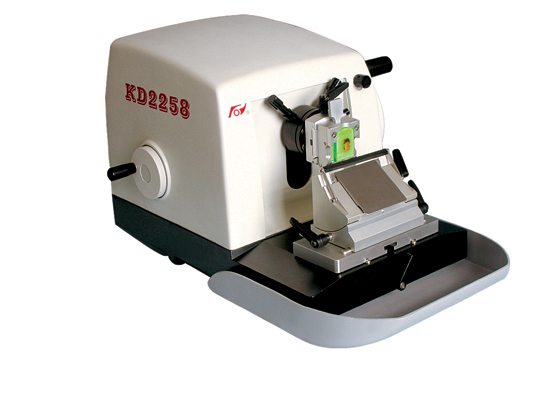

Manual Microtom
Manual Microtom
Click to enlarge image(s)
This model is specially developed for modern histopatholgy research.
It adopt imported guide ways,ideal devise,stable performance,ergonomic concept,and it's new development direction of histopathology research.
Features:
Ergonomical conception of devise,no feeling of tire for routine operation
Good section result whether by use of Standard Steel Knife or Disposable Blade
Specimen clamp positioned at 8  X/Y precision orientation system
Handweel system allow the handwheel locked at any position
Specimen block can be changed easily and conveniently
Blade holder can be moved horizontal or vertical,no need to touch the blade
N Steel knife holder and E disposable blade holder
External encloser is easy to clean,no need to unload
Large waste tray,easy to unload
Technical Specifications:
Section thickness range:0.560m
Setting value:    0.52m      increment  0.5
                              210m      increment  1m
                             1020m      increment  2m
                             2060m      increment    5m
Trimming thickness range: 160m
Minumum Setting value:0.5m
Precision Error:5%
Maximum Specimen Size:60x50mm
Object Feed: 28,Vertical Stroke: 60mm
Speciment return range: 028mm
Dimension: 500mx460mm x300mm
Net Weight: 23.3kg
