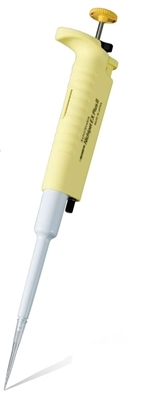

Autoclavable/UV stable, one-touch calibration digital pipette
Click to enlarge image(s)
  • Advanced durability against organic solvent dispensing.

    PTFE ( Fluorine resin ) in the air tight chamber of the instrument.

    A Perfluoro rubber O-ring with low cubical expansion in the airtight parts.

    All models have plungers made in materials resistant to organic solvents.

    An alloy spring to avoid metal corrosion by organic solvents.

  • Hyper Blower System, longer second - push stroke, improvesdispensing efficiency.(2μL, 10μL)
  • Fully autoclavable. ( 121℃ for 20 minutes )
  • Enhanced UV resistance for better use in UV hoods.
  • Easy-Calibration function provides simple lab calibration.
  • Ceramic plungers are used for volume models larger than 100μL.
  • The one-touch locking mechanism makes it easy to lock the sample volume.

*All features of Nichipet EXII are available on Nichipet Premium.



Specifications

Cat. No Volume Setting Volume range(μL) Increments(μL) Usable tips
00-NPLO2-2 Digital Setting 0.1~2 0.002 BMT2-UT/UTR、FUT/FUTRB
00-NPLO2-10 0.5~10 0.01 BMT2-SS/SSR、FSS/FSSRB
00-NPLO2-20 2~20 0.02 BMT2-SG/SGR、SE/SER、FSG/FSGRB
00-NPLO2-100 10~100 0.1 BMT2-SG/SGR、SE/SER、FSG/FSGRB※、FSE/FSERB
00-NPLO2-200 20~200 0.2 BMT2-SG/SGR、SE/SER、FSE/FSERB※、FAG/FAGRB
00-NPLO2-1000 100~1000 1 BMT2-LG/LGR、LE/LER、FLG/FLGRB、FLE/FLERB
00-NPLO2-5000 1000~5000 10 BMT2-X/XR
00-NPLO2-10000 1000~10000 10 BMT2-Z/ZR

AC&CV

Cat. No Volume(μL) Accuracy(%) Precision(%) Cat. No Volume(μL) Accuracy(%) Precision(%)
00-NPLO2-2 0.2 ±12.0※ ≦6.0※ 00-NPLO2-200 20 ±1.0 ≦0.5
1 ±5.0 ≦2.5 100 ±0.8 ≦0.3
2 ±3.0 ≦1.0 200 ±0.8 ≦0.2
00-NPLO2-10 1 ±4.0 ≦3.0 00-NPLO2-1000 100 ±1.0 ≦0.5
5 ±1.0 ≦1.0 500 ±0.8 ≦0.3
10 ±1.0 ≦0.5 1000 ±0.7 ≦0.2
00-NPLO2-20 2 ±5.0 ≦3.0 00-NPLO2-5000 1000 ±1.0 ≦0.3
10 ±1.0 ≦1.0 2500 ±0.8 ≦0.3
20 ±1.0 ≦0.4 5000 ±0.6 ≦0.2
00-NPLO2-100 10 ±2.0 ≦1.0 00-NPLO2-10000 1000 ±2.0 ≦0.4
50 ±1.0 ≦0.3 5000 ±0.8 ≦0.3
100 ±0.8 ≦0.3 10000 ±0.4 ≦0.2

※The AC and CV values below 0.2μL depend much on the operator’s skill and the environment under which the pipette is used.

※The AC and CV values are the values by use of the disposable tips described in the catalogue.

※The specification and price are subjected to change without notice due to modifications for quality improvement.

※The Nichipet EX Plus Ⅱ is made of parts resistant to organic solvents which makes it more durable than previous pipettes in environments with organic solvents. However, it does not guarantee accuracy of dispensing organic solvents.

※As the body of the Nichipet EX Plus Ⅱ is not resistant to organic solvents, make sure it does not come in contact with the organic solvents.
